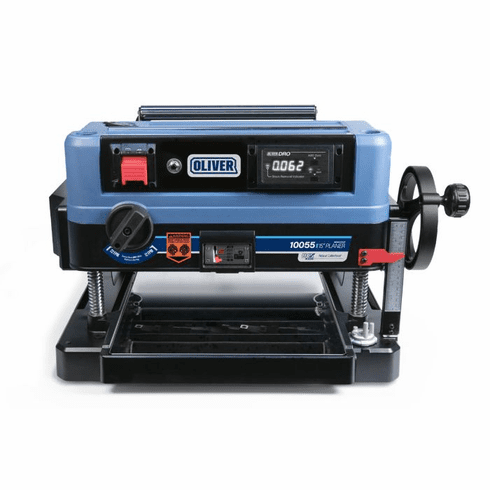

15" Benchtop HCX Helical Cutterhead Planer - 10055
The Industries only 220V 15" Benchtop Helical Cutterhead Planer is Now Shipping.
Our 10055 15” Benchtop Planer combines everything we know about building planers, from current and previous generations, and adds to our already industry leading benchtop line-up. We anticipate the new 10055 will be a category leader with the Oliver HCX Helical Cutterhead, increased cutting capacity, and powerful 2.5HP 1Ph 230V motor.
Features
Powerful 2.5HP 1Ph 12Amp 230V motor Plenty of power for smooth cuts and no blowing 110V breakers 2-Speed gearbox provides 12 or 22 FPM feed rates 4-post design ensures cutter head alignment to table Oliver HCX Helical Cutterhead (not segmented or spiral) Read more about our HCX Helical Cutterheads here Oliver DRO for precise material removal Large 15” x 23” table size (15"x48" with included extension tables) 4-depth stops allow easy set-up from 1/4” to 1” Elevation crank with lock includes an easy-to-read scale Lock in your thickness without worry of the carriage moving 4” Dust port to evacuate shavings Reversible for left or right exit Safety switch features overload protection and lock-out CSA listed
Add to Compare Skip to the end of the images gallery Skip to the beginning of the images gallery More Information More Information Model Number 10055 CutterHead Oliver HCX Helical Ph 1Ph Stock Number 10055.201 Maximum Stock Width 15" Maximum Depth of Cut Material under 6.5” width 1/8" Material over 6.5” width 3/64" Maximum Stock Thickness 6" Minimum Stock Thickness 1/8" Minimum Stock Length 8" Dust Port Diameter 4" (reversible for left or right exit) Minimum CFM Required 600cfm Feed Speeds 12 FPM or 22 FPM Table Size 15" x 23" Table Size w/Extension Wings 15" x 48" Cutterhead Speed 5,600 rpm Number of Knives (helical) 40 Footprint 28" x 23" Footprint - with Table 28" x 48" Motor 1Ph 2.5HP - 230V, 1Ph, 12A (NEMA 6-15 plug style, 7ft cord) Overall Dimensions 28" W x 23" D x 16" H (with extensions folded) 29" W x 27" D x 20" H (shipping crate) Net Weight 158.7lbs Gross Weight 172lbs
